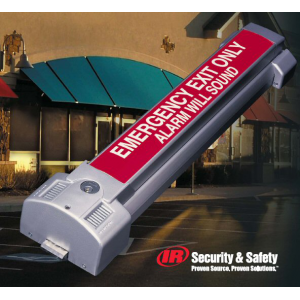

Von Duprin Guard-X Exit Alarm Rim Device
The new Von Duprin Series 2670 Exit Guard-X Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.
GUARD-X does not allow re-latching or resetting the alarm after an unauthorized exit, other than by an authorized person with a key. A 100-decibel alarm provides a clear, attention getting warning for an unauthorized exit or attempted exit.
The armed indicator light informs the owner that the alarm is armed, and an audible low-battery alert signals the owner to replace the battery when necessary
Heavy Duty Design
The new Series 2670 Exit Alarm Lock provides secure protection through a large stainless steel deadbolt, which is 2" x 1/2" (51mm x 13mm) and has over a 3/4" (19mm) throw. The engagement area into the strike is over 1 1/4" (32mm) square inches. The cast aluminum latch case protects the internal mechanism and resists tampering or vandalism from inside the door. This unit has been tested to withstand up to 1600 pounds of static load force against the door.
Security
GUARD-X does not allow re-latching or resetting the alarm after an unauthorized exit, other than by an authorized person with a key. A 100-decibel alarm provides a clear, attention getting warning for an unauthorized exit or attempted exit. The armed indicator light informs the owner that the alarm is armed, and an audible low-battery alert signals the owner to replace the battery when necessary.
Compliance
GUARD-X complies with the NFPA 101® Life Safety Code "the actuating portion of which extends across at least one half of the door leaf. It is UL listed for Panic Exit Hardware (UL305) including "the ends of the crossbar or push pad shall curve, guard, or otherwise designed to prevent catching on the clothing of persons during exit" for use on Emergency Exit applications, and tested in accordance to ANSI A156.3 Grade 1 Panic Hardware (250,000 cycles).
Installation takes just a few minutes with an easy-to-use adhesive back template. The product's non-handed design means the installer can mount it for either hand by just removing and reversing the "Emergency Exit Alarm Will Sound" sign built into the device. The standard warning sign is in English with Braille; French and Spanish are available.
Operation and Outside Trim
GUARD-X is armed and disarmed by a key using a standard rim cylinder. For owner convenience, Guard-X can be operated from the building's exterior by a second standard rim cylinder, so an authorized user can easily arm and disarm it to enter or exit the building when required. When using exterior operation a pull trim is recommended, use 210DT or 230DT. Rim cylinders are not furnished and must be ordered separate (see above).
A standard 9-volt battery powers the alarm. An exterior 9-volt power supply is available, Model PT-790, a 120VAC plug-in. When using the external power supply, the 9-volt battery functions as a battery backup during a power failure.
In Stock - Same Day Shipping!
Fits 36" to 48" Door Width.
