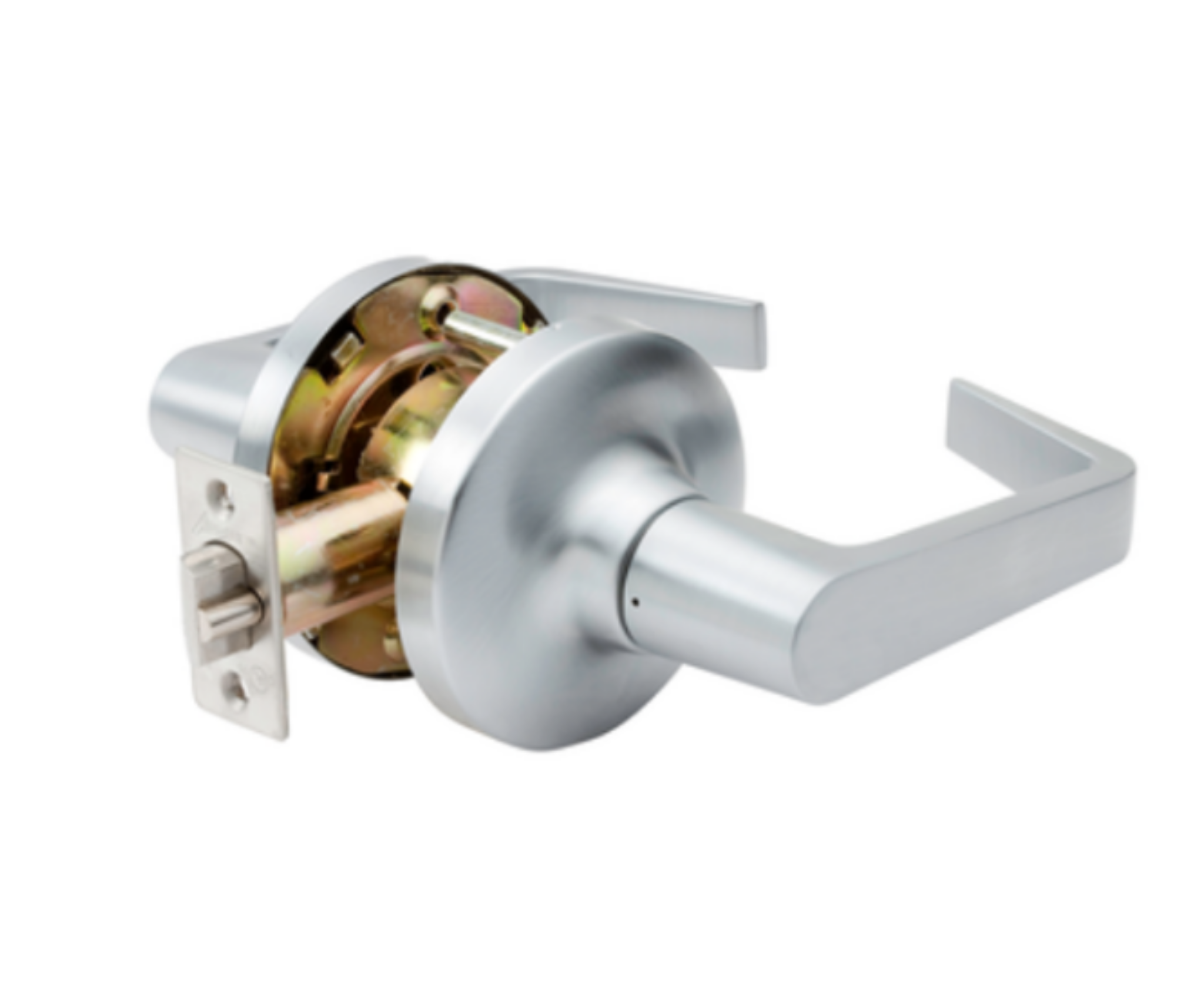

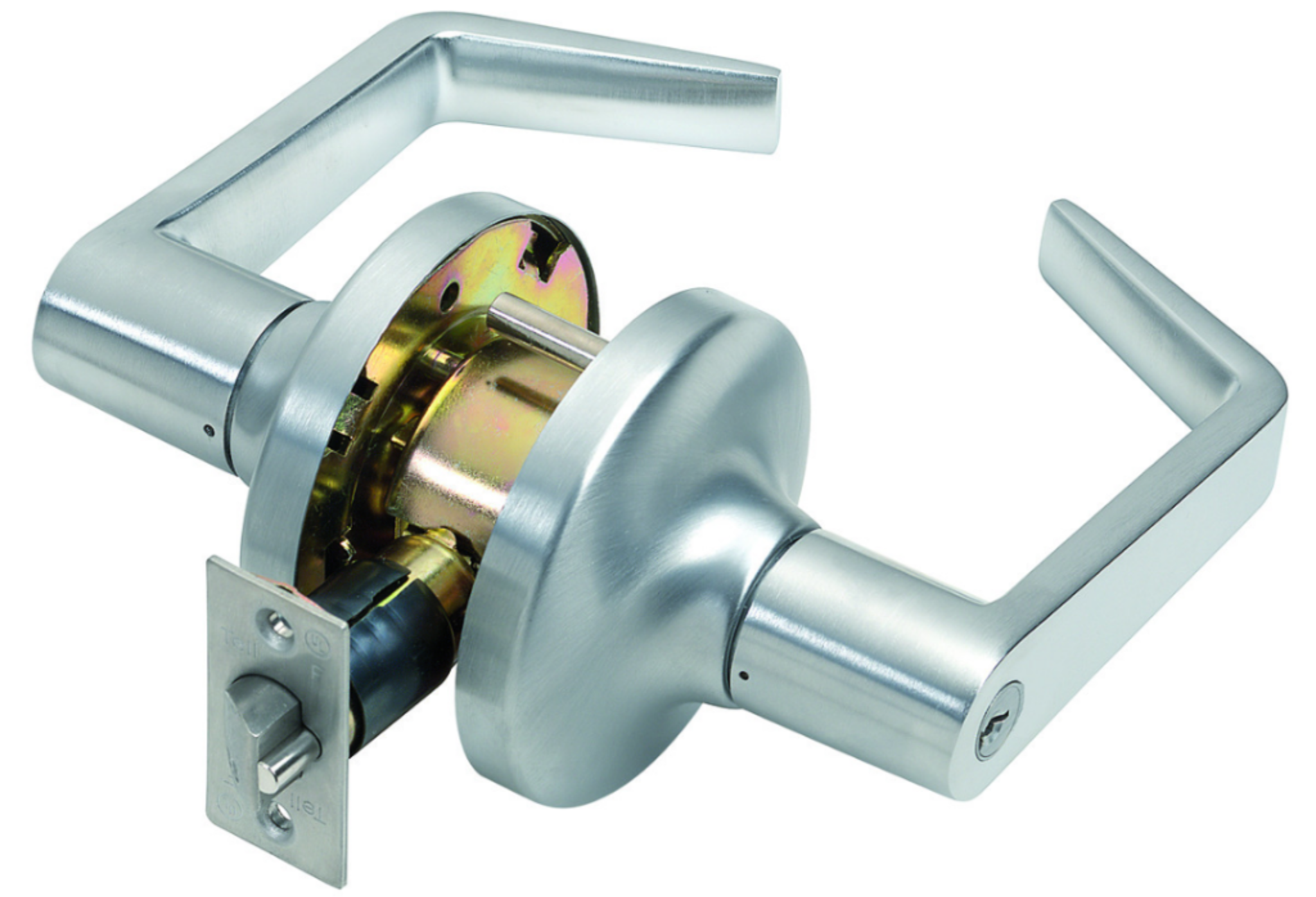

Tell L1080 Grade 1 Storeroom Function Lever Lock

  • $132.00


Tell L1080 Grade 1 Storeroom Function Lever Lock

Great for use on store rooms or any door that you want to automatically lock behind the people that walked out of it. You never have to worry about someone accidentally leaving a door unlocked because when they walk out it just automatically locks.


Performance Complies with ANSI A156.2, Series 1000, Grade 1, (800,000 cycles), UL/ULC listed
for 3 hour fire door. ANSI A117.1 American Disabilities Act (ADA)

Function: Storeroom

Chassis: Cylindrical, steel - coated with zinc dichromate (corrosion resistance),
freewheeling clutch (added security from hammer attacks), independent spring

Lever: Non-handed, solid cast

Latch: 1-1/8 x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2"

Rose: 3-1/2" diameter
Thru-bolts Thru-bolts standard. Removable available.
Backset: 2-3/4"
Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike

Standard Cylinder: Standard cylinder Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD).

Keys: Two nickel silver per lock cylinder

Cylinder: Other manufacturers including small format interchangeable cores

Door Range: 1-3/8' to 2"

Door Preparation: 2-1/8" diameter for lever, 1' diameter for latch bolt. Fits standard 161 door prep
with through-bolting through the door.

Warranty Limited Lifetime

Strike T Strike (1-1/8" x 2-3/4"), and F Strike (full lip)
Backset: 2-3/8" or 2-3/4"


Tell Cylinder:

Restricted Tell keyway cylinder can key both the cylinder and interchangeable core
in one lock. The cylinders and IC cores are interchangeable. Tell keyway cylinder is
available only keyed to 6-pin. Tell IC cylinder can be keyed to 6-pin or 7-pin
interchangeable core (IC).

Other Cylinder Options:

Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4),
Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F
(SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA)

IC Keyway Cylinder:

T, Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF),
AVAILABLE 6- AND 7-PIN Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q
(BQ), Best U (BU), Black construction core (BLK), Less core (00), Not specified (XX)
Keying Options Grand master key (GMK), construction master key (CMK), master key (MK), keyed
different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted
