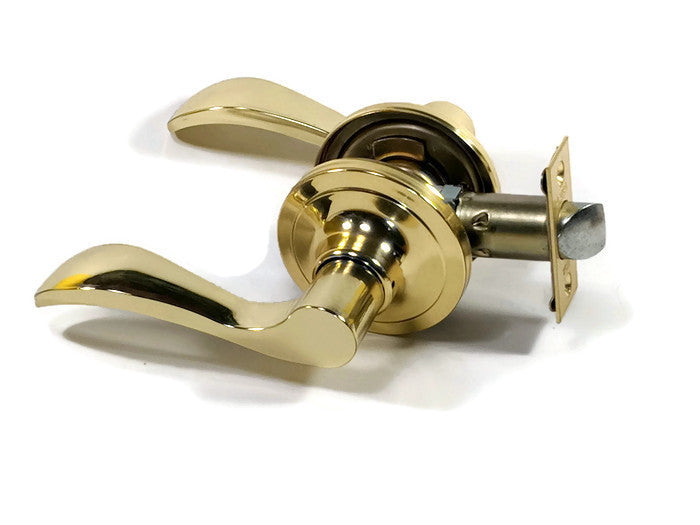

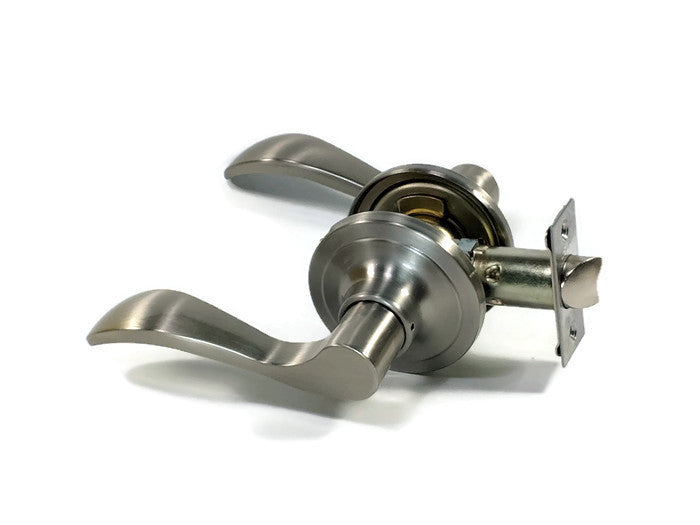

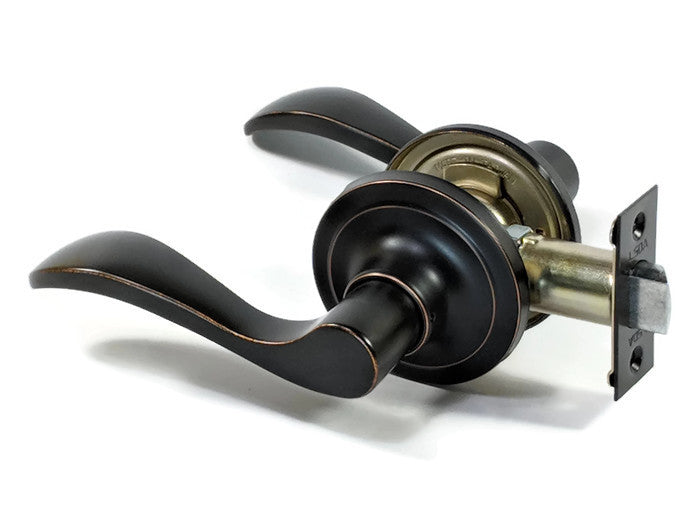

LSDA Series 50 Grade 3 Residential Passage Lever

  • $17.10
  • Save $10.40


The 50-Series levers are residential grade 3 tubular locks in a variety of attractive
styles. Available in several finishes, they can be used in a various residential and
light commercial applications. These locks are recommended for use on exterior
and interior doors. Typical applications include Houses, Apartments, Offices, and
Condominiums.
Standard Features
• Certifications: ANSI/BHMA 156.2 Series 4000, Grade 3
• Latch: Adjustable 2 3⁄8” and 2 3⁄4” Backset , 45º lever travel
• Handing: Field Reversible
• Materials: Zinc Die Cast, Brass, Steel
• Strike: 2 1⁄4” full lip• Door Prep: 2 1⁄8” diameter bore, 1” crossbore; 2 1⁄4” x 1” latch face, concealed screws
• Door Thickness: 1 3⁄8” x 1 3⁄4” standard
