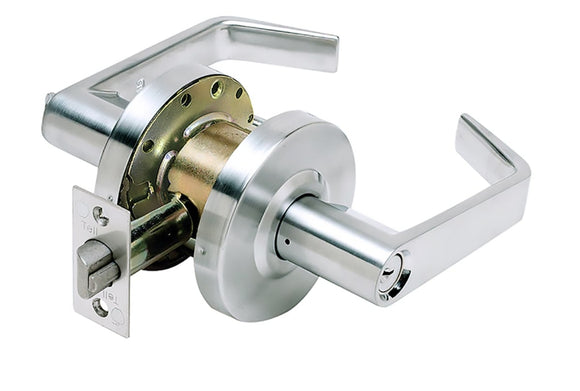

NSP LC 2600 series standard duty grade 2 cylinder lever lockset
LC2600 SERIES Standard Duty Grade 2 Cylindrical Lever
- Certification: ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, ANSI A117.1
- accessibility (ADA) code, UL listed for 3 hour fire door.
- Chassis: Cylindrical, steel-coated w/zinc dichronate (corrosion resistance).
- Lever: Nonhanded.
- Latch: 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless
- steel).
- Thru-bolts: REMOVABLE.
- Backset: 2-3/4"
- Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike.
- Door Range: 1-1/2" to 2".
- Door Preparation: 2-1/8" diameter for bore, 1" dia. latch bore. Fits std. 161 door prep.
- Cylinder: Schlage C 6-pin (SCC) Keyway. 2 nickel silver keys per lock.
- Warranty: One year manufacturer's limited warranty.
- Case: 6 per case, call for case discounts
