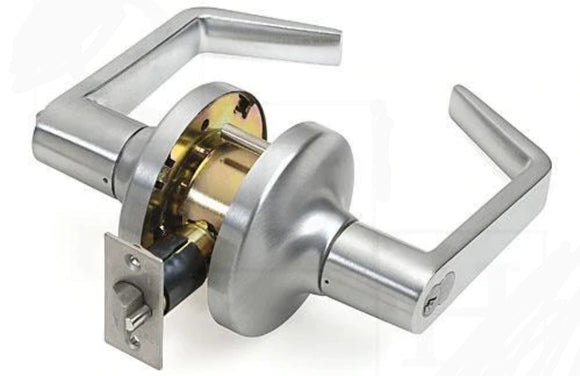

NSP LC 2400 series heavy duty grade 2 cylindrical lever lock set
- Heavy Duty Grade 2 Cylindrical
- Lever Locksets
- ·Certification:ANSI A156.2,
- UL listed for 3 hour fire door.
- ·Chassis: Cylindrical,
- steel-coated w/zinc dichro-nate (corrosion resistance),
- freewheeling clutch (added security from hammer attacks),
- independent spring cages.
- Cortland Lever Design
- Chassis conforms to Grade 1
- ANSI A156.2 specifications.
- ·Lever: Nonhanded, solid cast.
- ·Latch: 1-1/8" x 2-1/4" square corner faceplate, 1" housing
- diameter (Stainless steel),
- 1/2" throw.
- ·Strike: Square corner 1-1/4"x 4-7/8"ANSI ASA Strike.
- ·Door Range: 1-3/8" to 2".
- ·Door Preparation: 2-1/8" diameter for bore, 1" diameter latch
- bore.Fits standard 161 door prep.
- · Thru-bolts: Thru-bolts standard.
- ·Backset:2-3/4”
- ·Cylinder: Schlage C 6-pin solid brass keyway.2 keys per lock.
- ·Warranty:One year manufacturer's limited warranty.
