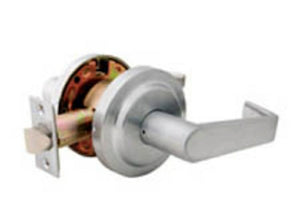

LSDA L110 Grade 2 Passage Lever

LSDA L110 Grade 2 Passage Lever Lock

Certifications: ANSI/BHMA 156.2 Series 4000, Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors, available separately

• Latch: 2 3/4” Backset UL Listed Latch (sold with lock where indicated); 2 3/8” Backset available

• Handing: Non-Handed• Materials: Zinc, Brass, Steel

• Strike: 4 7/8” x 1 1/4” ANSI full lip

• Door Prep: 2 1/8” diameter bore, 2 1/4” x 1” latch face, or with 1 1/8” wide latch face (where 074SL or 074DL listed in part number)

• Door Thickness: 13/8” x 13/4” standard• Rose Diameter: 3.35”
