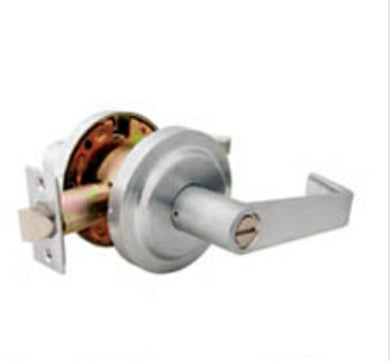

LSDA L120 Grade 2 Privacy Lever

The LSDA L120 Grade 2 privacy lever lock is built with independent return springs in each lever and with an optional clutch feature to protect against excessive torque, these levers resist sagging. The L-shaped lever design with less than 1/2 ” gap between the handle and the door meets most accessibility codes. Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.

Grade:                2, Commercial / Heavy Duty Residential

Function:            Privacy

Door Thickness: 1-3/4" - 1-3/4"

Door Prep:         2-1/8" w/ 1" edge bore

Handing:           Non-Handed

Standards:        ANSI/BHMA 156.2 Series 4000, Grade 2; UL Listed Latches (USA and Canada) for 3-hour fire doors
