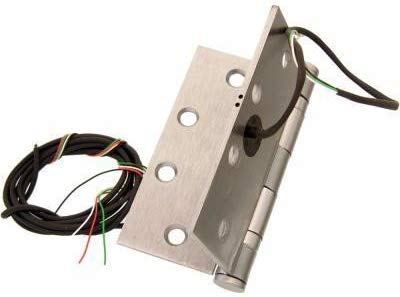

Command Access 6 Wire Energy Transfer Hinge ETH6W 4.5 x 4.5 26D

UL-F Rated

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise & cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights.

4' Lead available at no charge

Center located wire access hole

Non-conductive wire access cap for added protection

Specifications

Voltage: Voltage range - 22 to 28 VDC

System protection: unit shutdown  when voltage exceeds 28VDC

Average In-rush Current - 1A

Average Hold Current - 180mA

PTS adjustment - approx. 1/4

Wire run: 500' with 18ga wire, 700' with 16ga wire

Configurations Available: Molex Connectors available

ETH6W: 6 Wire (26 gauge) -1 A@24V (per pair)

Weight: 2 lbs

Mfg.# ETH6W 4.5 x 4.5 26D
