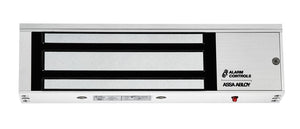

Alarm Controls Single Magnetic Lock with LED Sensor, 600 LB, 12 or 24 VDC

600 lbs holding force

Magnet size: 9-7/8" L x 1-11/16" H x 1" W

Armature size: 7-1/4" L x 1-1/2" H x 1/2" W

Operates on 12 or 24 VDC, switch selectable

Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC

Operating temperature: +14 to +131F [-10 to +55C]

Sensors have SPDT 3A relay contacts

UL 10C, UL 294 and ULC-S104 (Canada) listed

Bond sensor and door status sensor signal a powered and securely locked door

Self-drilling TEC screws

Built-in arc suppression

Instant release, no hysteresis

E-Z mount system, no special tools required

Bi-colored status LED

Clear anodized, (US28) finish standard

Mfg.# 600LB
