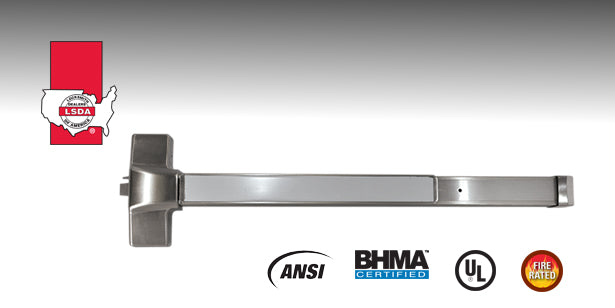

LSDA Exit Devices, Heavy Duty, PD9000 Series

  • $220.00


Overview

The PD9000 Series are designed to meet the need of a modern touch bar style for heavy traffic applications by eliminating the need for lever arms and cross bars. These devices are recommended for use on exterior and interior out-swinging doors. Typical applications include Hospitals, Office Spaces, Schools, Industrial Sites, Government Buildings, and Places of Assembly.

Standard Features

  • Certifications: ANSI/BHMA A1563.3 2008 Grade 1, UL Listed (USA and Canada) Panic Hardware and Fire Exit Hardware
  • Latch: Rim (Deadlocking latch, stainless steel 3/4" throw); Vertical Rod (Top latch is 5/8" throw, can be deadlocked automatically; Bottom latch is 5/8" throw, held retracted during door swing).
  • Sizes: 36" (33" actual length; can be cut back to 26" from head cover to end cap) or 48" (45" actual length; can be cut back to 30" from head cover to end cap)
  • Handing: Non-Handed
  • Materials: High rust-Resistant coating or heavy electroplated steel
  • Strike: For Rim, surface applied; Double door strike available; For Vertical Rod Strikes, surface applied top, mortise required for bottom strike
  • Door Types: Commercial wood and hollow metal
  • Door Prep: Surface application, plus trim prep; Door height for Vertical Rod is standard 7'0"
  • Dogging: Hex key dogging standard
  • Door Thickness: 1,3/4"
  • Stile Width: Minimum 2,7/8"
  • Projection: Pushbar Neutral of 3,1/16" and Pushbar Depressed of 2,19/32"
  • Keying: Outside trims use conventional mortise or rim cylinders



    Finishes

    • 630/ US32D: Satin Stainless Steel
