Overview

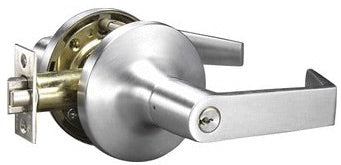

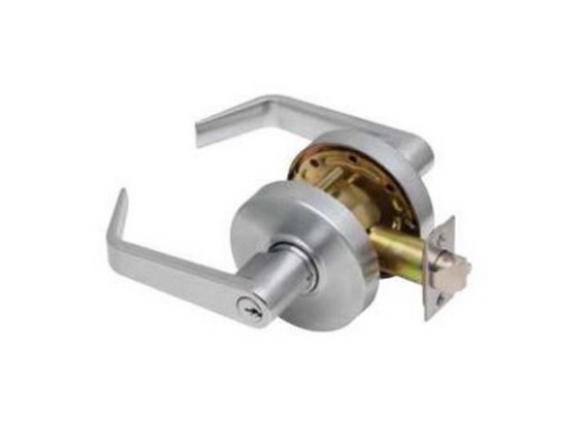

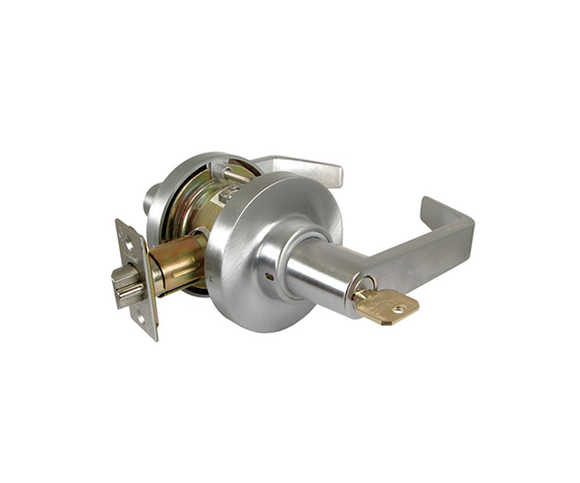

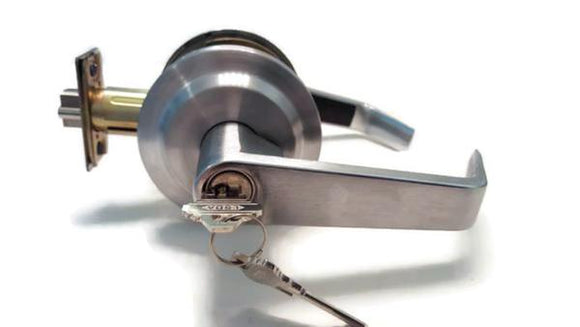

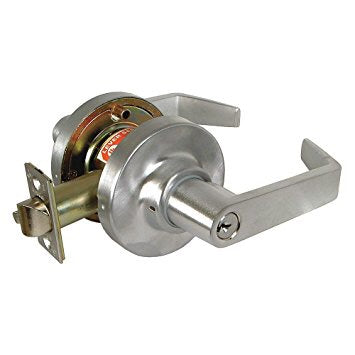

LF-Series cylindrical lever locks are designed for high traffic applications. Unique cold-rolled steel spindles withstand up to 1000 inch-pounds of torque and the lever is compliant with ADA and other accessibility codes. These locks are recommended for use on exterior and interior doors. Typical applications include Offices, Hospitals, Schools, Multi-Family Buildings, Industrial Sites, and Public Buildings.

Standard Features

Certifications: ANSI/BHMA 156.2 Series 4000, Grade 1; Latch is UL Listed (USA and Canada) for 3-hour fire doors, included, for single swing doors (4'x8')
Latch: 2 3/4" Backset UL Listed included; 2 3/8" UL Listed Backset available
Handing: Non-Handed
Materials: Stainless Steel, Brass, Solid Die-Cast Plated
Strike: 4 7/8" x 1 1/8" ANSI
Door Prep: ANSI 115.2 for thru-bolted installation, 2 1/4" x 1 1/8" latch face
Door Thickness: 1 3/8" - 2" standard; Thick door packages are available for 2 1/4"

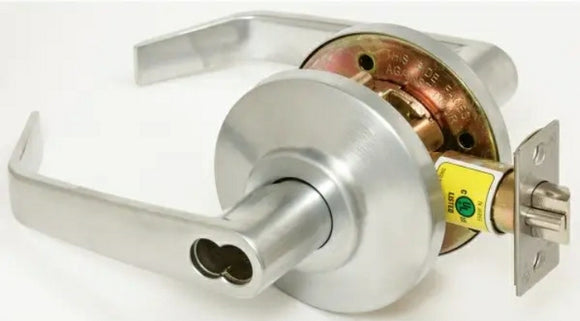

Keying: Cylinders: Equipped with SC4 rekeyable 6-pin brass cylinders, compatible with LSDA Replacement C500 cylinders and many other retrofit cylinders including most high security brands.; SFIC/LFIC: Some models prepped for Small Format Interchangeable Core (SFIC), such as Best , Falcon, KSP, Arrow , 6- or 7-Pin, or prepped for Large Format Interchangeable Core (LFIC) such as Schlage, available in limited product selection.

Available Lock Functions

Entrance / Office (LF2000) and with Clutch (LFC2000)
Passage (LF2100)
Privacy (LF2200)
Storeroom (LF2400) and with Clutch (LFC2400)
Classroom (LF2500) and with Clutch (LFC2500)
Classroom Intruder (LF2800) and with Clutch (LFC2800)
Institutional (LF2900) and with Clutch (LFC2900)
